Bently Nevada PROXPAC XL Proximity Transducer Assembly

Bently Nevada PROXPAC XL Proximity Transducer Assembly

-----

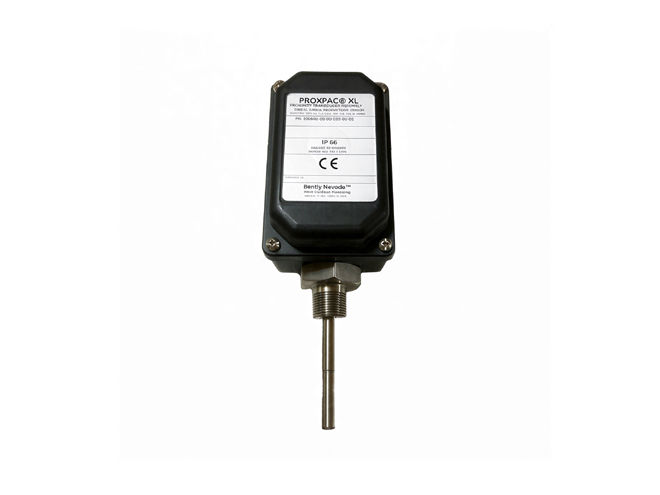

The Bently Nevada PROXPAC XL Proximity Transducer Assembly is a fully integrated, self-contained solution designed for non-contact vibration and position measurement in rotating machinery. It combines a proximity probe and a 3300 XL Proximitor sensor within a single housing, eliminating the need for a separate extension cable and external Proximitor enclosure.

This integrated design allows direct field wiring between the monitoring system and the PROXPAC XL assembly, simplifying installation and reducing system complexity. Additionally, the assembly enables external access and adjustment of the proximity probe, improving maintenance efficiency and operational flexibility.

The housing is constructed from Polyphenylene Sulfide (PPS), an advanced molded thermoplastic reinforced with glass and conductive fibers. This material enhances mechanical strength and electrostatic charge dissipation, while providing superior protection in harsh industrial environments.

The PROXPAC XL assembly is rated for Type 4X and IP66, ensuring reliable performance in severe environmental conditions, including exposure to moisture, dust, and corrosive elements.

Features of Bently Nevada PROXPAC XL Proximity Transducer Assembly

-----

• Integrated Proximitor Sensor – Includes built-in 3300 XL Proximitor sensor within the housing

• No Extension Cable Required – Eliminates the need for probe-to-sensor extension cable

• Self-Contained Design – Combines probe and signal conditioning in one unit

• Direct Field Wiring – Connects directly to monitoring systems without external housings

• Externally Accessible Probe Adjustment – Simplifies calibration and maintenance

• Advanced PPS Housing – Reinforced thermoplastic construction for durability and static dissipation

• Type 4X and IP66 Rated – Suitable for harsh industrial environments

• Improved Environmental Protection – Designed for demanding operating conditions

Technical Specifications of Bently Nevada PROXPAC XL Proximity Transducer Assembly

-----

General

• Measurement Principle: Eddy current (non-contact)

• System Type: Integrated proximity transducer assembly

• Components: Probe and 3300 XL Proximitor sensor housed together

Electrical

• Power Supply:–17.5 Vdc to –26 Vdc (without barriers)
  –23 Vdc to –26 Vdc (with barriers)

• Output Resistance: 50 Ω

Mechanical & Construction

• Housing Material: Polyphenylene Sulfide (PPS)

• Reinforcement: Glass and conductive fibers for strength and electrostatic dissipation

• Protection Rating: Type 4X, IP66

• Design: Integrated probe and sensor (no external housing required)

Temperature Ratings

• Probe Temperature Range: –60°F to 350°F (–51°C to 177°C)

• Housing Temperature Range: –60°F to 212°F (–51°C to 100°C)

Environmental Considerations

• Designed for severe industrial environments

• Provides protection against moisture, dust, and corrosive conditions

• Housing material improves electrostatic discharge performance

Applications of Bently Nevada PROXPAC XL Proximity Transducer Assembly

-----

The Bently Nevada PROXPAC XL Proximity Transducer Assembly is used in industrial machinery monitoring systems where simplified installation and robust environmental protection are required:

• Rotating Machinery Vibration Monitoring

• Shaft Position and Displacement Measurement

• Oil & Gas, Power Generation, and Industrial Plants

• Applications requiring compact, integrated transducer solutions

Part Number of Bently Nevada PROXPAC XL Proximity Transducer Assembly

-----

Standard (Example) Part Number

330880-00-00-00-00-00

This is a reference configuration for the Bently Nevada PROXPAC XL Proximity Transducer Assembly. It represents one commonly supplied setup and helps customers understand how the part number is structured.

Configurable Part Number Format

33088X-XX-XX-XX-XX-XX

Each X / XX in the part number indicates a selectable option that can be customized based on your application requirements such as Approvals & Length.

Important: Final part number depends on the exact configuration needed for your machinery, environment, and monitoring system.
