Bently Nevada 330980 Proximity Sensor

Bently Nevada 330980 Proximity Sensor

-----

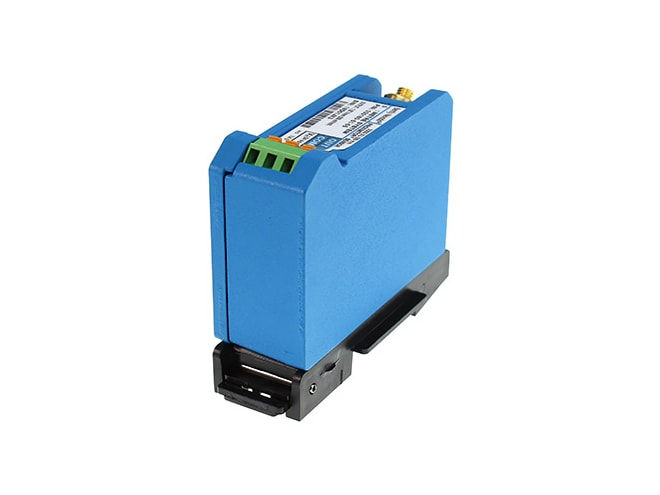

The Bently Nevada 330980 Proximitor Sensor is a signal-conditioning device used as part of the 3300 XL NSv Proximity Transducer System, which consists of a proximity probe, extension cable, and Proximitor sensor. This system provides non-contact measurement of shaft vibration and position in rotating machinery.

The Bently Nevada 330980 Proximity Sensor offers significant improvements over previous designs, providing flexible mounting options for high-density DIN-rail installations or traditional panel configurations. Its 4-hole mounting footprint matches older Proximitor Sensor designs, while the integrated mounting base ensures electrical isolation without the need for separate isolator plates. This robust design allows easy installation in critical rotating machinery systems while maintaining reliable, accurate measurements.

The Bently Nevada 330980 Proximity Sensor also features enhanced RFI and EMI immunity, allowing installation in fiberglass housings without interference from nearby radio frequency signals. Its improved immunity meets European CE mark requirements without special shielding or metallic enclosures, reducing installation complexity and costs. To ensure accurate performance, the electrical length of the probe and extension cable must match the Proximitor’s electrical length.

Features of Bently Nevada 330980 Proximity Sensor

-----

• Part of 3300 XL NSv System – Works with NSv probe and extension cable as a calibrated system

• Compact Installation Design – Suitable for DIN rail and panel mounting configurations

• Electrical Isolation Mounting Base – Eliminates need for separate isolator plates

• High RFI/EMI Immunity – Prevents interference from nearby high-frequency radio signals

• CE Compliance – Achieves European approvals without special mounting requirements

• SpringLoc Terminal Strips – Tool-free, secure, and reliable field wiring connections

• System Electrical Length Matching – Probe + extension cable + sensor must have consistent electrical length

Technical Specifications of Bently Nevada 330980 Proximity Sensor

-----

General

• Measurement Principle: Eddy current (non-contact)

• System Components: Probe, extension cable, Proximitor sensor

• System Type: 3300 XL NSv proximity transducer system

• Application Type: Restricted mounting and small target applications

Electrical

• Power Supply: –17.5 Vdc to –26 Vdc

• Current Consumption: Up to 12 mA

• Output Impedance: 50 Ω

• Supply Sensitivity: < 2 mV/V

• Output Signal: Voltage proportional to target distance (generated by Proximitor sensor)

Mechanical & Installation

• Mounting Options: DIN rail or panel mount

• Mounting Footprint: Compatible with previous Proximitor designs

• Wiring: SpringLoc terminal strips (no special tools required)

• Mounting Base: Provides electrical isolation

Environmental Considerations

• EMC Performance: High immunity to RFI/EMI interference

• Compliance: Meets CE requirements without special mounting considerations

• System Performance: Depends on combined probe, extension cable, and sensor configuration

Applications of Bently Nevada 330980 Proximity Sensor

-----

The Bently Nevada 330980 Proximitor Sensor is used in critical machinery monitoring, especially where installation constraints or small targets exist:

• Centrifugal Air Compressors

• Refrigeration Compressors

• Process Gas Compressors

Typical Measurement Functions (System-Level)

• Radial vibration and position measurement

• Axial (thrust) position monitoring

• Tachometer and zero speed measurement

• Phase reference (Keyphasor signals)

Part Number Of Bently Nevada 330980 Proximity Sensor

-----

Standard (Example) Part Number

330980-50-00

This is a reference configuration for the Bently Nevada 3300 XL NSv Proximity Probe. It represents one commonly supplied setup and helps customers understand how the part number is structured.

Configurable Part Number Format

330980-XX-XX

Each X / XX in the part number indicates a selectable option that can be customized based on your application requirements such as Approvals & Length.

Important: Final part number depends on the exact configuration needed for your machinery, environment, and monitoring system.
