Bently Nevada TK-3 Proximity System Test Kit

Bently Nevada TK-3 Proximity System Test Kit

-----

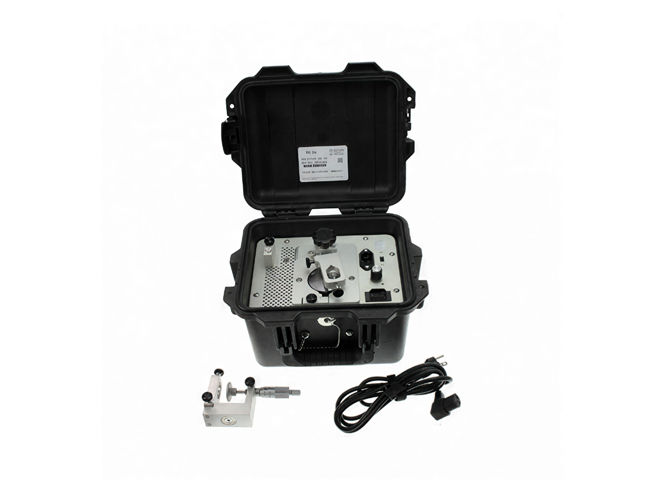

The Bently Nevada TK-3 Proximity System Test Kit is a portable diagnostic and calibration tool designed to simulate shaft vibration and position for verifying the performance of Bently Nevada proximity transducer systems and monitors. It enables both static and dynamic calibration, ensuring that transducer inputs and corresponding monitor readings remain accurate and reliable.

The TK-3 kit includes a removable spindle micrometer assembly used for precise calibration of proximity probes and position monitors. This assembly features a universal probe mount, accommodating probe diameters from 5 mm to 19 mm (0.197 to 0.75 in). The probe is securely held while the user adjusts the target position in calibrated increments, allowing accurate measurement of Proximitor sensor output using a voltmeter.

For vibration calibration, the system utilizes a motor-driven wobble plate that generates controlled mechanical vibration. A swing-arm assembly, equipped with the same universal probe mount, positions the probe over the wobble plate. By referencing the probe’s scale factor and measuring the output signal, users can accurately simulate vibration levels without requiring an oscilloscope.

The TK-3 system produces a mechanical vibration signal ranging from 50 to 254 μm (2 to 10 mils) peak-to-peak, enabling precise comparison between actual monitor readings and known vibration inputs.

Features of Bently Nevada TK-3 Proximity System Test Kit

-----

• Simulates Shaft Vibration and Position – Supports calibration of proximity systems and monitors

• Static and Dynamic Verification – Enables full system calibration and validation

• Motor-Driven Wobble Plate – Generates controlled mechanical vibration signals

• Removable Spindle Micrometer Assembly – Provides precise position calibration

• Magnetic Base – Allows easy and stable field use

• Universal Probe Mount – Accommodates probe diameters from 5 mm to 19 mm

• Portable and Lightweight Design – Suitable for field and workshop use

• Industrial-Strength Case – Protects internal precision components

• Maintenance-Free Electric Drive – Ensures reliable long-term operation

• No Oscilloscope Required – Calibration can be performed using a multimeter

Technical Specifications of Bently Nevada TK-3 Proximity System Test Kit

-----

General

• Function: Calibration and verification of proximity probe systems and monitors

• Calibration Type: Static (position) and dynamic (vibration)

• Probe Compatibility: 5 mm to 19 mm diameter probes

Mechanical & Operation

• Spindle Micrometer Assembly: Removable design
  Provides calibrated displacement adjustments
  Includes magnetic base for field use


• Probe Mount:Universal mount for multiple probe sizes
  Eliminates need for multiple adapter collars

Vibration Simulation

• Drive System: Motor-driven wobble plate

• Vibration Range: 50 to 254 μm (2 to 10 mils) peak-to-peak

• Measurement Method: Based on probe output and scale factor using a multimeter

Design & Construction

• Portability: Lightweight and easy to transport

• Enclosure: Industrial-strength case for durability

• Drive Type: Maintenance-free electric drive

Applications of Bently Nevada TK-3 Proximity System Test Kit

-----

The Bently Nevada TK-3 Proximity System Test Kit is widely used for maintenance, calibration, and troubleshooting of machinery monitoring systems:

• Calibration of Proximity Probes and Proximitor Sensors

• Verification of Vibration and Position Monitors

• Field Testing of Machinery Protection Systems

• Maintenance of Rotating Equipment in Oil & Gas, Power Plants, and Industrial Facilities

Part Number of Bently Nevada TK-3 Proximity System Test Kit

-----

Standard (Example) Part Number

177313-01-01

This is a reference configuration for the Bently Nevada TK-3 Proximity System Test Kit. It represents one commonly supplied setup and helps customers understand how the part number is structured.

Configurable Part Number Format

177313-XX-XX

Each X / XX in the part number indicates a selectable option that can be customized based on your application requirements such as Approvals & Length.

Important: Final part number depends on the exact configuration needed for your machinery, environment, and monitoring system.
